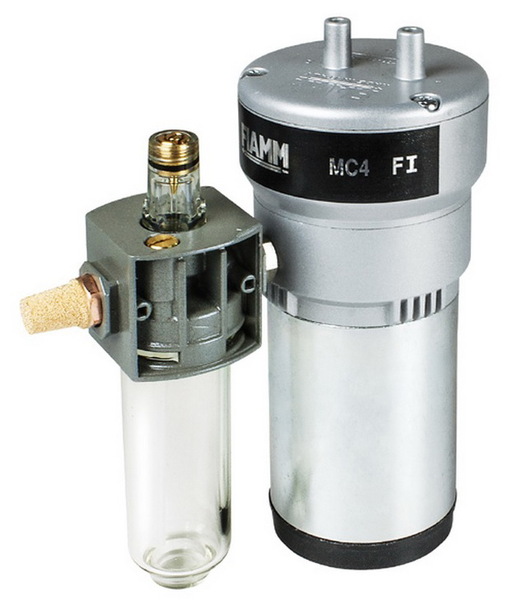

Compressors with lubricators newest generation

MC4 FD (german modulation 20 cycles/min)

MC4 FI (modulation: international Hi-Lo, 60 cycles/min, british)

MC4 FVA (italian modulation)

ATTENTION:

For special order newest generation kompressors with italian, dutch and austrian modulation are available.

Voltage

12V

24V

Current consumption

17A

8A

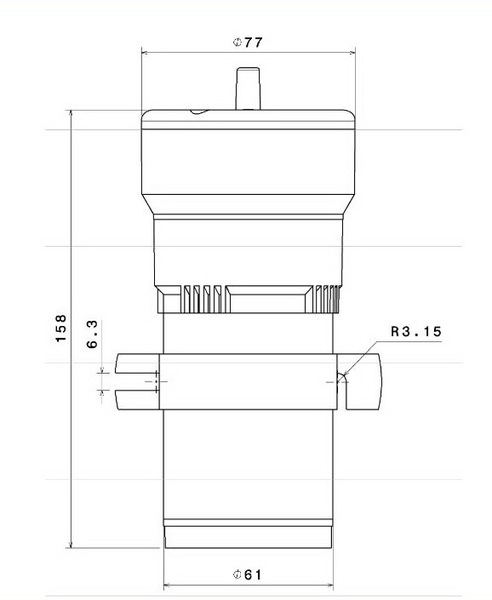

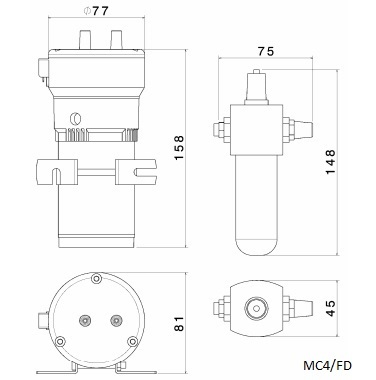

Dimensions of the compressors MC4 FD, FMC4 FI,

MC4 FVA

height: 158 mm

diameter of the body: 61 mm

diameter of the body's top: 77 mm

Acoustic power

117 dB(A) 2m

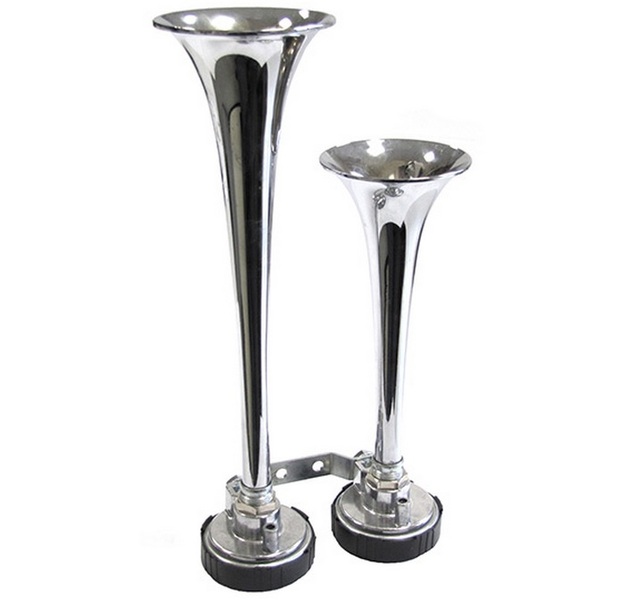

Chrome double trumpets with spoiler

TA/2 906-C

- height: 215 and 284 mm

- frequency: 466 and 622 Hz

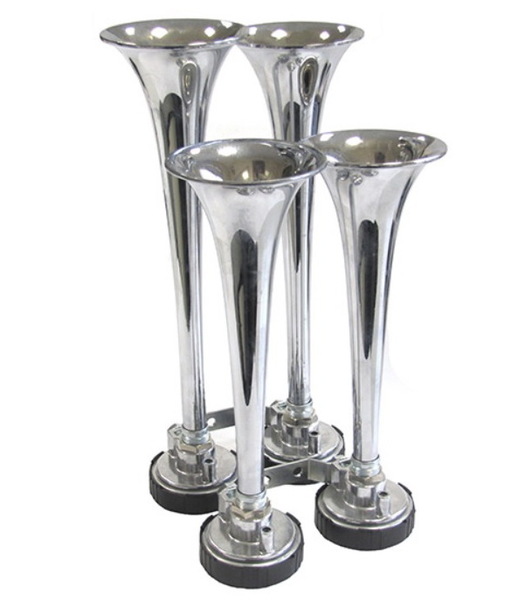

Chrome quadruple trumpets with spoiler

TA/4 906-V

- height of long trumpets: 297 i 289 mm

- height of short trumpets: 223 i 214 mm

- frequency of low tones:  435-450 Hz

- frequency of high tones: 622 Hz
